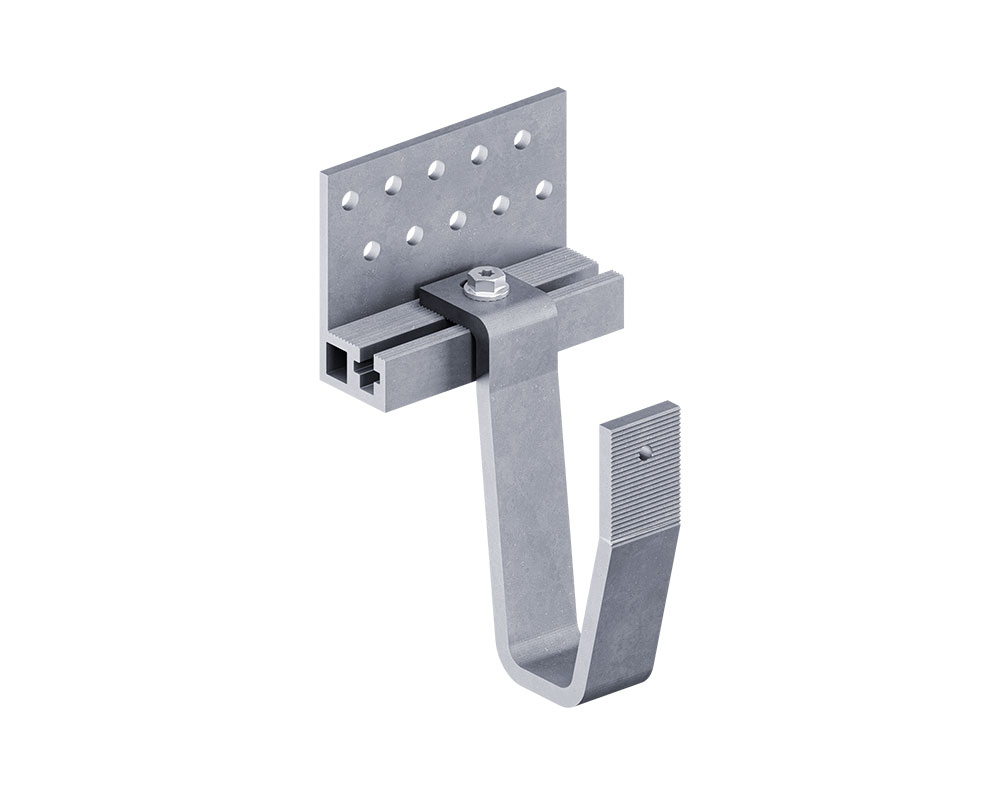

Produktbild

Roof hook LayTec

.

The LayTec roof hook is used to mount solar panels in combination with the LayTec insertion system. Thanks to our T40 ONLY system, you only need a TX40 tool for installation. The LayTec insertion system only needs to be aligned once and then all solar modules can be inserted one after the other. This saves valuable working time and effort. Thanks to the geometry of the hook, the position of the bracket can be easily adjusted and fastened.

Advantages/Features

  • T40 ONLY -> One tool for everything - TX40
  • Insertion system -> Quick insertion of the solar modules without additional clamping -> Reduction in working time and effort
  • No loosening of the screw due to vibration thanks to locking teeth and micro-encapsulation
  • Hooks are easy to adjust and fasten
  • Suitable for the LayTec insertion system

Material

  • Aluminium (EN AW-6063 T66)
  • Stainless steel A2 (1.4301)
Art. no. Dimensions base plate Material base plate Dimensions hook Material hook Installation height PU EAN
SOL100727
122 x 90 x 40 mm
Aluminium
122 x 210 x 136 mm
Stainless steel A2 (1.4301)
126,5–136 mm
12
4064827319161
