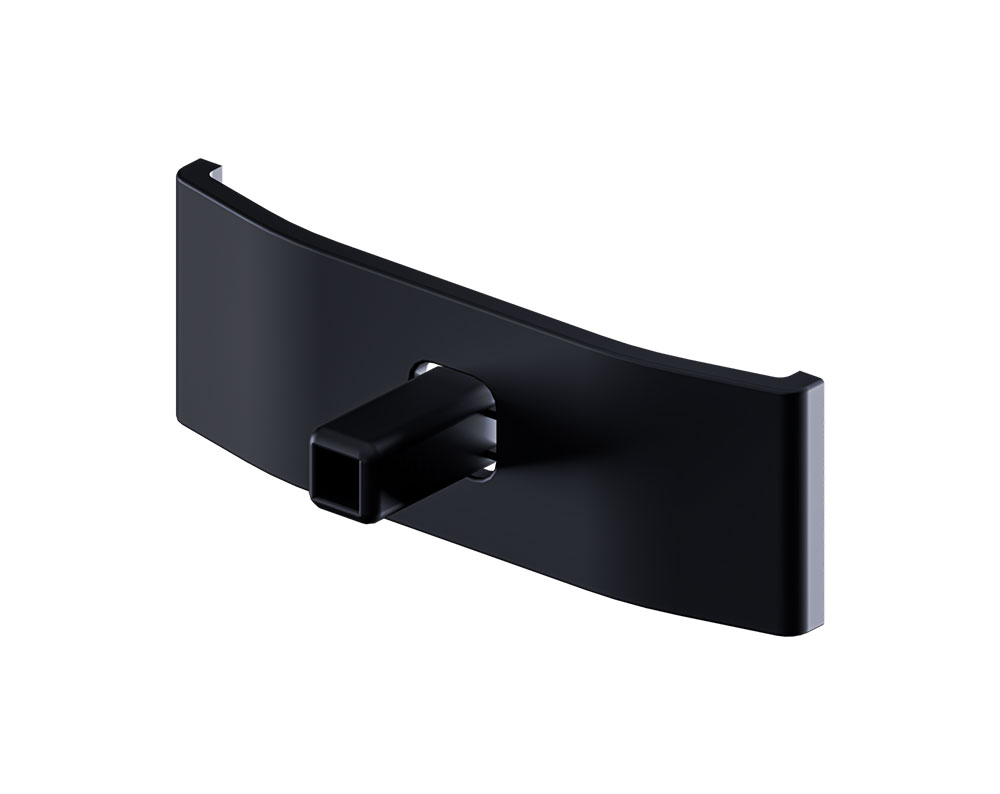

Produktbild

Spacer LayTec

.

The LayTec spacer ensures secure positioning of the inserted profiles and automatically maintains the minimum distance of 10 mm between two module frames, which is necessary due to thermal linear expansion. They are simply clamped behind a module in the top rail after it has been inserted. The LayTec insertion system only needs to be aligned once and then all solar modules can be inserted one after the other. This saves valuable working time and effort.

Advantages/Features

  • T40 ONLY -> One tool for everything - TX40
  • Insertion system -> Quick insertion of the solar modules without additional clamping -> Reduction in working time and effort
  • Hooks are easy to adjust and fasten
  • Suitable for the LayTec insertion system

Material

  • Polypropylene carbonate
Art. no. Dimensions Material PU EAN
SOL100732
90 x 29 x 30 mm
PP (Polypropylene)
20
4064827319246
