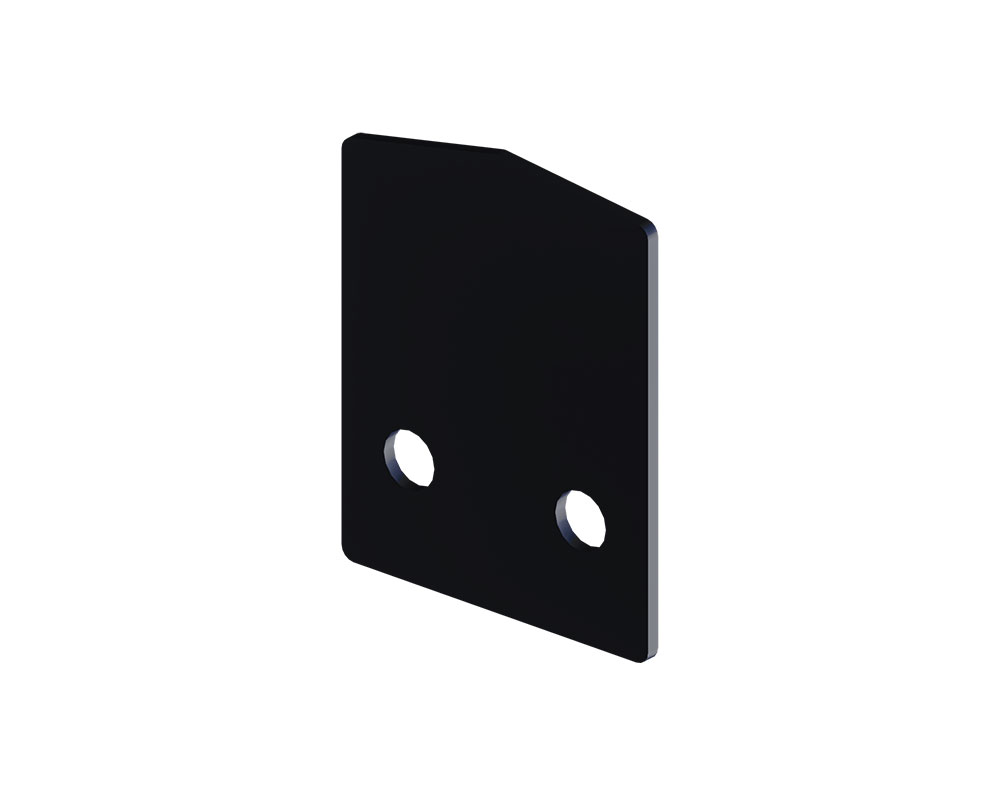

Produktbild

End cap LayTec

.

The LayTec end cap closes the side openings of the LayTec insertion profile and thus ensures secure fastening of the solar modules and an attractive overall appearance thanks to closed surfaces. Fastening is carried out using 2 TX40 screws. Thanks to our T40 ONLY system, you only need a TX40 tool for installation. The LayTec insertion system only needs to be aligned once and then all solar modules can be inserted one after the other. This saves valuable working time and effort.

Advantages/Features

  • T40 ONLY -> One tool for everything - TX40
  • Insertion system -> Quick insertion of the solar modules without additional clamping -> Reduction in working time and effort
  • Hooks are easy to adjust and fasten
  • Suitable for the LayTec insertion system

Material

  • Aluminium (EN AW-6063 T66)
Art. no. Dimensions Material PU EAN
SOL100731
65 x 51,5 x 2 mm
Aluminium
20
4064827319239
