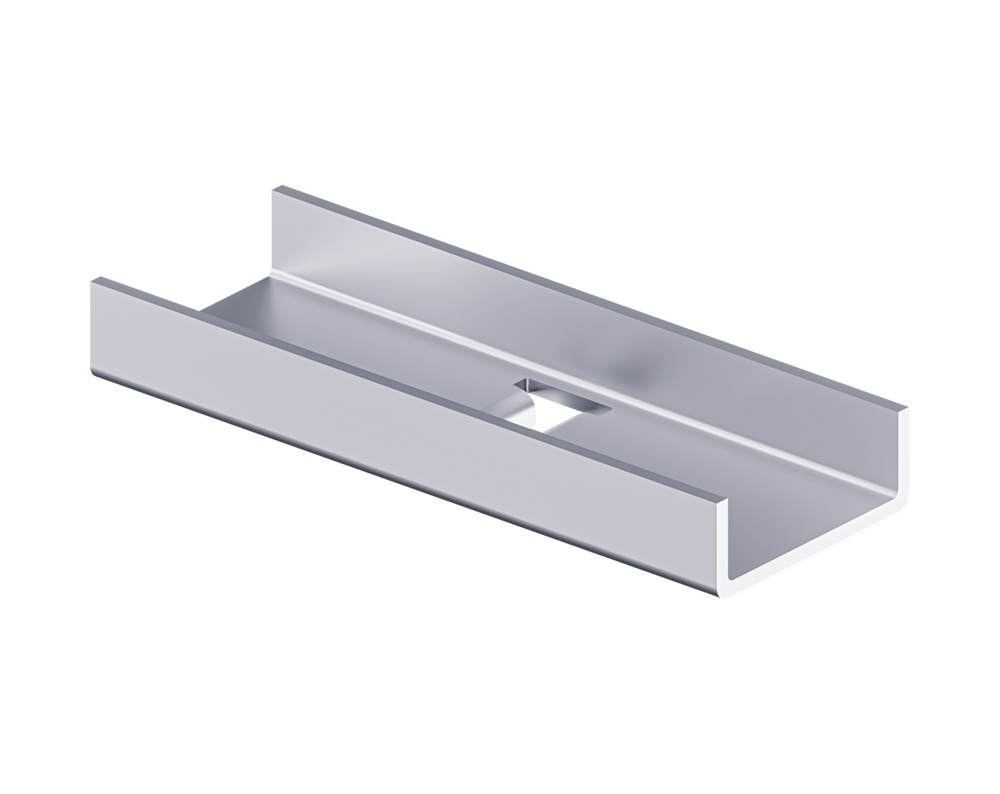

Produktbild

Longitudinal connector insert profile LayTec

.

The longitudinal connector for the LayTec insert profile is used to connect two individual LayTec insert profiles. The connector is simply pushed into the profile. Due to the punched-in spacers, the connector is automatically centered between the profiles and leaves a gap of approx. 7 mm between the modules for thermal expansion of the profiles. The connector is only used for connection and does not replace any fixing points on the roof.

Advantages/Features

  • Quick connection of two profiles
  • No screwing in necessary
  • Enables longitudinal expansion of the profiles

Material

  • Stainless steel A2
Art. no. Dimensions Wall thickness Material PU EAN
SOL100764
100 x 36,5 x 3,5 mm
2,0 mm
Stainless steel A2
20
4064827376126
