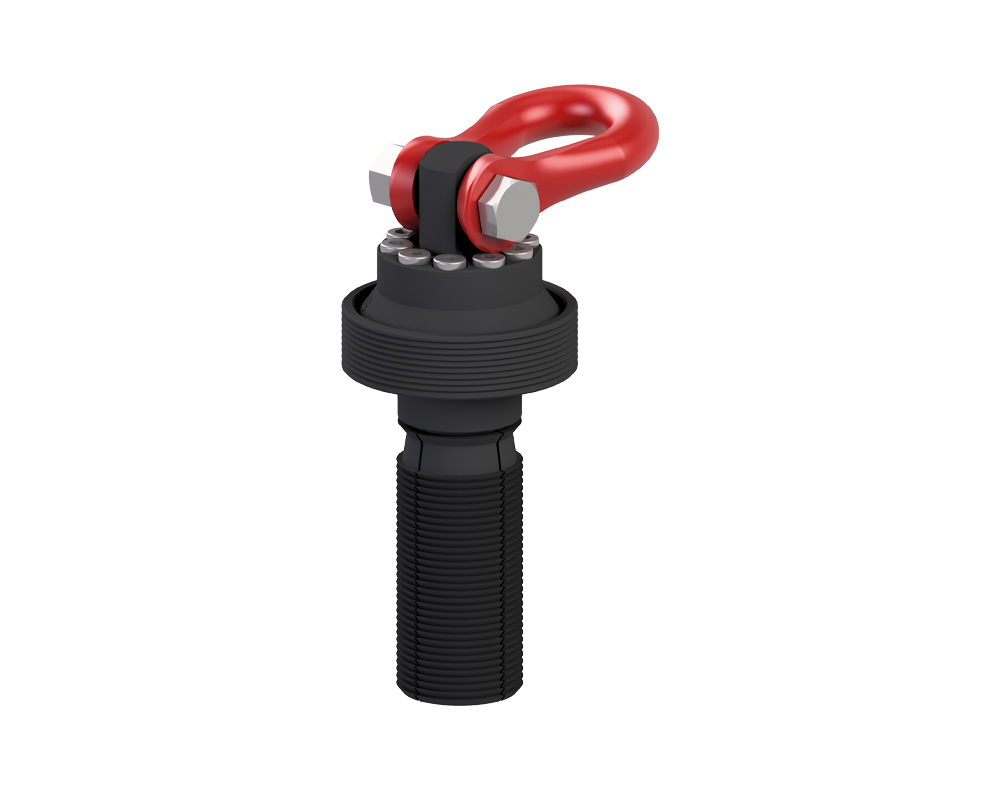

Pick MAX transport anchor

The Pick MAX transport anchor allows for the easy and efficient lifting of wooden parts such as plywood, laminated timber and solid timber. The system developed in Austria impresses with a load cycle of up to 16,000 lifting operations and a payload of up to 2,400 kilograms per fastening point. It only requires a blind hole with a diameter of 50 millimetres and a depth of 140 millimetres to carry out the assembly. As a result, the surface quality remains untouched and no additional fastening screws are required.

The Pick MAX Transport Anchor is supplied as a system case. The System Case contains the following parts:

• 2 Pick MAX transport anchors
• 2 shackles
• Drill HMB
• IBG drill bell

Advantages/Specifications

• Payloads of up to 2,400 kg per fastening point
• Attached in a few simple steps, no need to align the lifting tackle.
• The visible quality of the surfaces is not affected; no fastening screws are required.
• Long service life: 16,000 load cycles (in accordance with EN 13155:2020)
• Versatile application: on the front side, panel side or on the cross-beam side for all types of beams

Note

• The specifications of the operating instructions included with the product must be observed
• Have the load-handling equipment checked once a year by authorised persons. You can find the details in the enclosed operating instructions.
• Document your inspections in the maintenance book of the operating instructions.
• Feel free to take advantage of the Pick Check offer at any time.
• The Pick MAX Transport Anchor is supplied in a system case as a set for 2 lifting points and the necessary installation material.
• The hole can be used for lifting a maximum of 6 times.
• The lifting anchor can be used a maximum of 16,000 times.
