END hammer-in frame fixing
Beschreibung

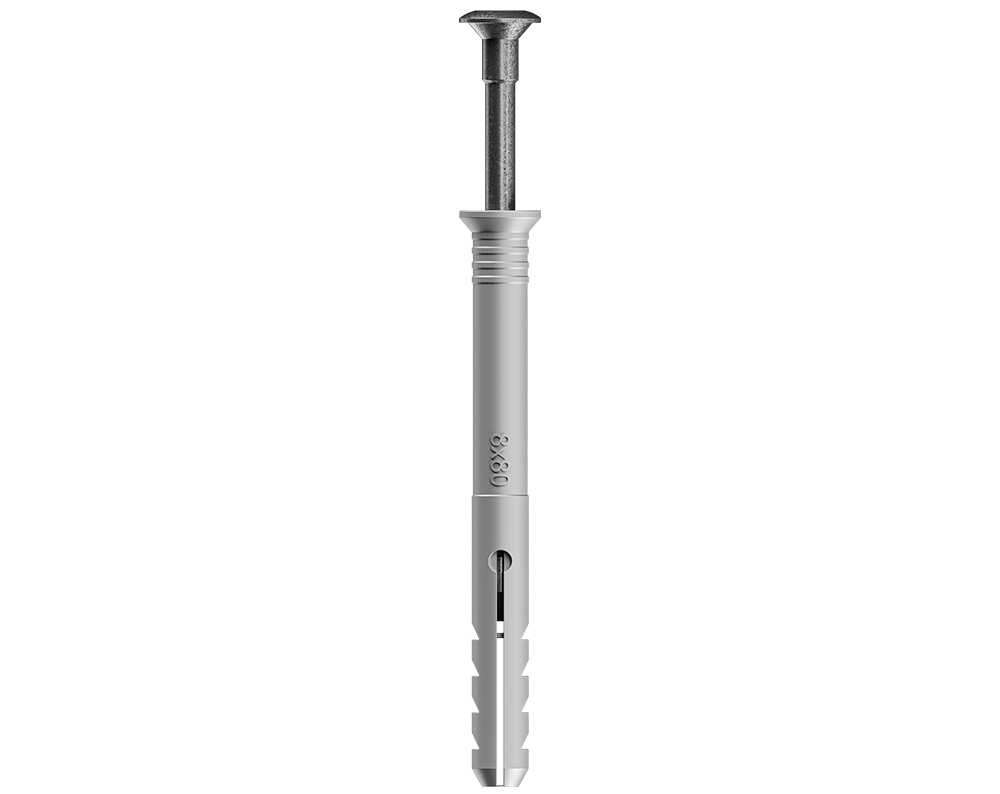

END hammer-in frame fixing
Set consisting of plug and nail
The EuroTec hammer-in frame fixing (END) is suitable for fastening in concrete, solid bricks, sand-lime bricks and other high-strength building materials. It consists of an electrogalvanised crosshead screw (PZ2) and a countersunk plastic plug.
Advantages:
- Fast and efficient installation.
- Saves time thanks to preinstalled threaded nail.
- Especially suited to working with timber and lightweight-construction profiles.
- Easy to remove with crosshead drive.
| Art. no. | Dimensions | Drive | PU | EAN |
|---|---|---|---|---|
| 200004 | Ø 5 x 30 mm | PZ 2 | 200 | 4250207473404 |
| 200005 | Ø 5 x 40 mm | PZ 2 | 200 | 4250207473411 |
| 200006 | Ø 6 x 40 mm | PZ 2 | 200 | 4250207473428 |
| 200007 | Ø 6 x 60 mm | PZ 2 | 200 | 4250207473435 |
| 200008 | Ø 6 x 80 mm | PZ 2 | 200 | 4250207473442 |
| 199996 | Ø 6 x 100 mm | PZ 2 | 100 | 4251314720962 |
| 199997 | Ø 8 x 50 mm | PZ 2 | 100 | 4251314720979 |
| 200009 | Ø 8 x 60 mm | PZ 2 | 100 | 4250207473466 |
| 200010 | Ø 8 x 80 mm | PZ 2 | 100 | 4250207473473 |
| 200011 | Ø 8 x 100 mm | PZ 2 | 100 | 4250207473459 |
| 199998 | Ø 8 x 120 mm | PZ 2 | 100 | 4251314720986 |
| 199999 | Ø 8 x 140 mm | PZ 2 | 100 | 4251314720993 |
