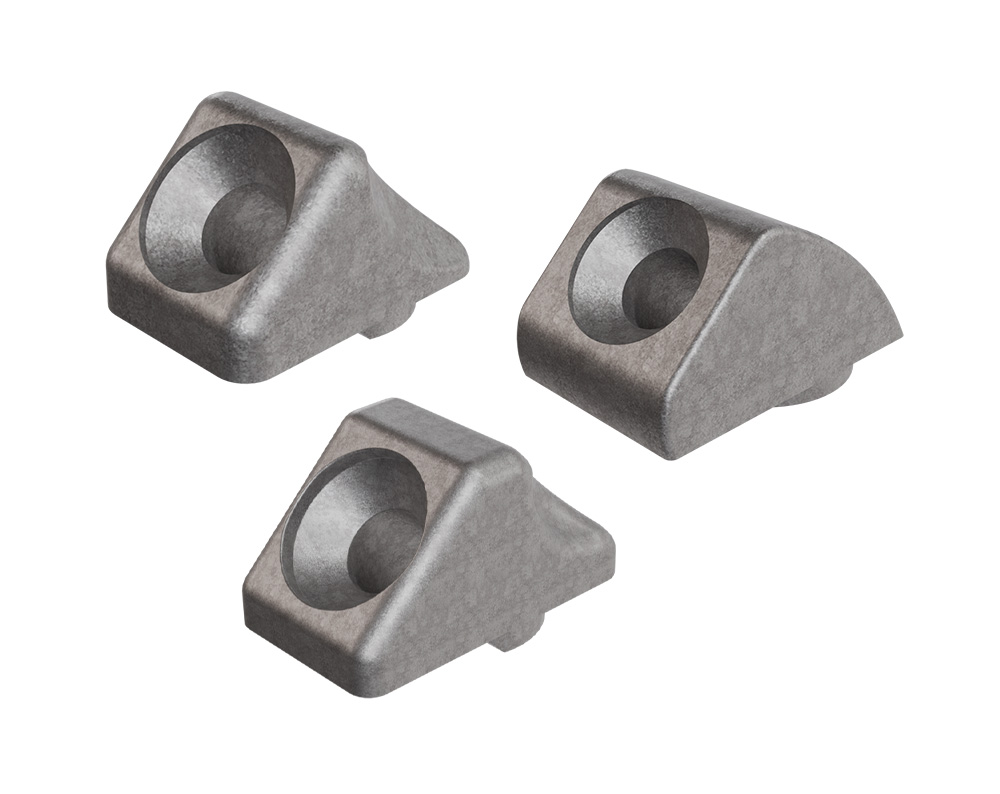

Taurus 45°

The Taurus 45° is suitable for affixing metal tension straps in wood structures. A force-locking connection is created when the entire circumference of the screw head is in contact with the material. To prevent a shifting of the Taurus, simple round holes are drilled/milled or lasered into the metal tabs.

The Taurus thus ensures that screws may be screwed in at a 45° incline, whereby a quick and simple transferability of the tensile forces is ensured. The Taurus 45° is compatible with fully threaded countersunk screws with 8 mm and 10 mm diameters.

Material

  • Made of galvanised cast steel

Advantages

  • 45° screw fittings for ideal absorption of tensile forces
  • Large contact surface prevents the countersunk head from being pulled through
  • Simple and quick fitting for a force-locking connection
  • Suitable for Ø 8 and Ø 10 mm fully-threaded countersunk head screws

Download

Data sheets


Product data sheet – – Taurus 45°

CAD data


DWG data Taurus 45°

Art. no. Dimensions Attachment hole diameter Mounted part thickness Weight PU EAN
800268 29 x 19 x 19,5 mm Ø 17 mm 3 bis 5 mm 34 g 10 4251314737625
800269 43 x 26 x 25 mm Ø 26 mm 3 bis 10 mm 115 g 10 4251314737618
