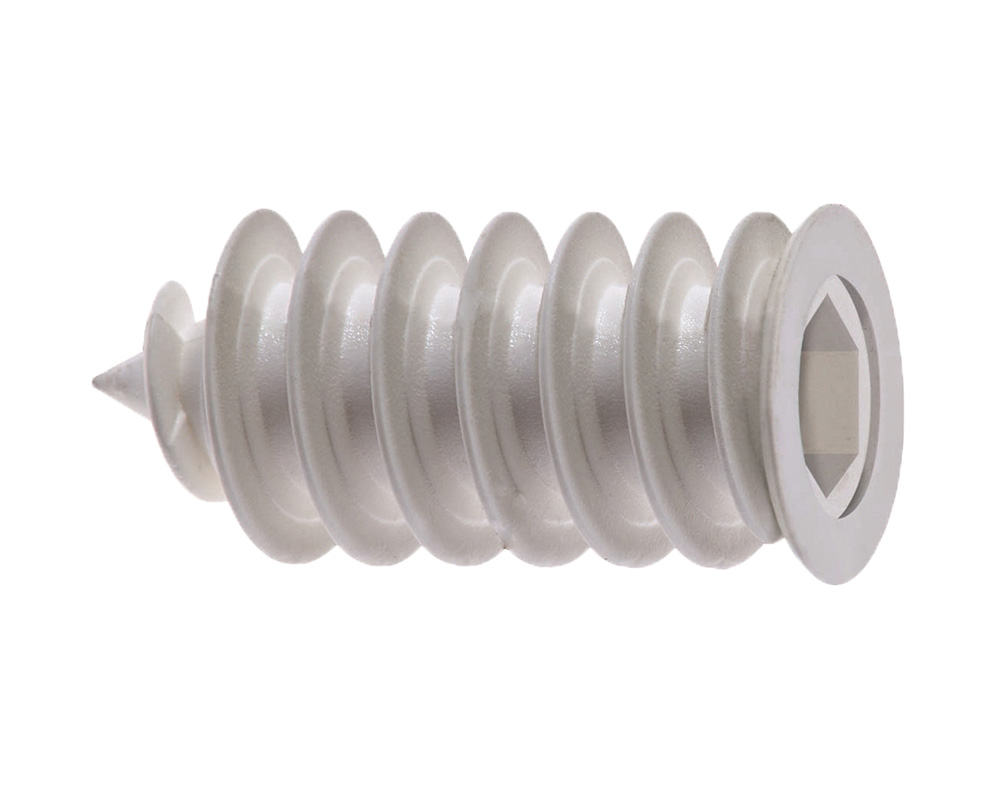

Rigid foam plug
Beschreibung
Rigid foam plug
Plastic
For anchorages in expanded polystyrene, rigid foam boards and other soft building materials
The Eurotec rigid-foam plug is suitable for direct anchorages in expanded polystyrene, rigid-foam boards and other soft building materials. During installation, the plug’s conical shape causes compaction of the material surrounding the point where it is screwed in, therefore ensuring a secure plug grip.
The plug has a TX/hexagon drive and is screwed in in a straightforward and time-saving manner with no need for pilot drilling.
* Screw not included.
Download
CAD data
Art. no. | For screw Ø | Dimensions | Drive | PU | EAN |
---|---|---|---|---|---|
200060* | 4,0 - 4,5 | Ø 20 x 50 mm | TX30 | 50 | 4251314701428 |
200061* | 8,0 / M8 | Ø 30 x 95 mm | TX55+SW17 | 50 | 4251314701435 |
200062* | 10,0 / M10 | Ø 30 x 95 mm | SW17 | 50 | 4251314701442 |
