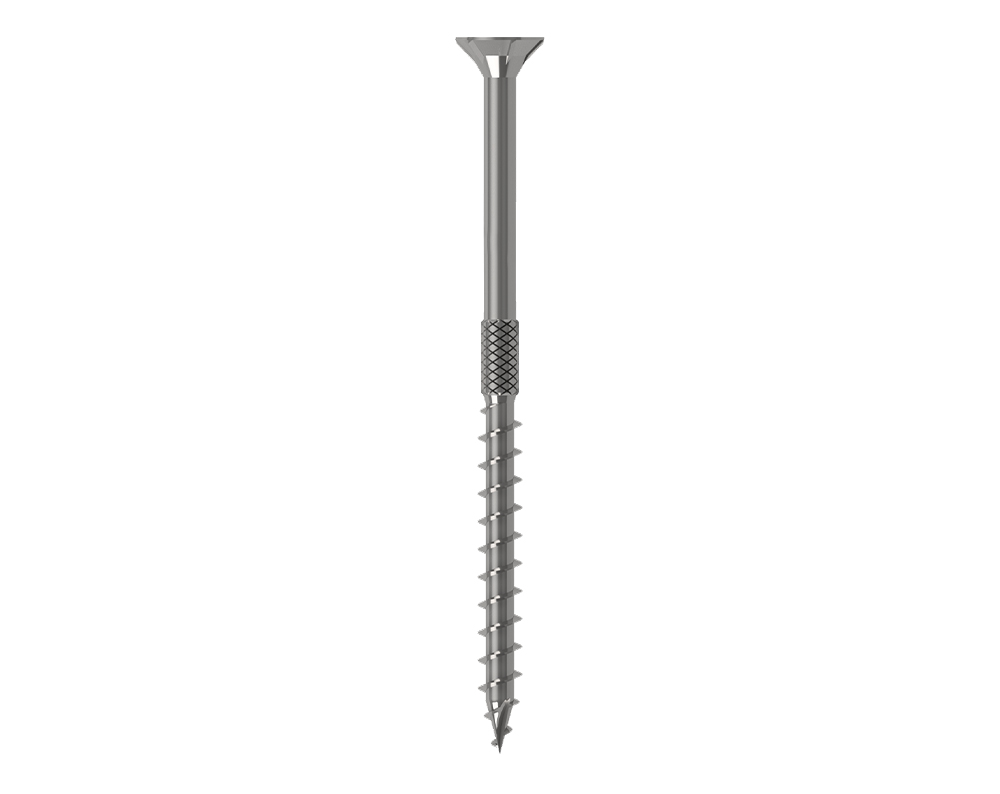

Paneltwistec magazine, shortened thread

Stainless steel

The collated Paneltwistec with a countersunk head stands out due to shortened thread. It is used as a fastener for load-bearing timber structures between components made of solid wood, glued laminated timber, laminated veneer timber or similar wood materials. The screw features a special scraper groove at the screw tip. The shortened thread of the collated Paneltwistec screw enables the pressing on of stronger attachment parts.

Material

Hardened carbon steel, blue galvanized

  • Corrosion resistant
  • Suitable for service classes 1 and 2 according to DIN EN 1995 Eurocode 5
  • Good resistance to mechanical stress
  • Not suitable for timbers containing tannins

Advantages

  • Shortened thread length enables pressing on of robust attachments
  • Resistant to mechanical stress
  • Quick and easy screwing in due to scraper groove and ribs
  • The scraper groove reduces the risk of wood splitting
  • National and international certifi cations
  • No hitting the screw when screwing in through TX-drive

* Dimensions Ø d x L

* Head diameter Ø dh

Europ. Techn. Assessment: ETA-11/0024

Generic type and use of construction product:

Wood construction screws

Open PDF

Download

Product data sheets


Product data sheet – Paneltwistec SK magazine, shortened thread


Technical information

CAD Data


DWG data - Paneltwistec magazine, shortened thread

Art. no. Dimensions Thread lengths Head diameter Drive Pieces/belt Coils/carton EAN
905638 5,0 x 70 mm* 35 10,0 mm* TX25 125 5 4251314737045
905642 5,0 x 80 mm* 40 10,0 mm* TX25 125 5 4251314737052
