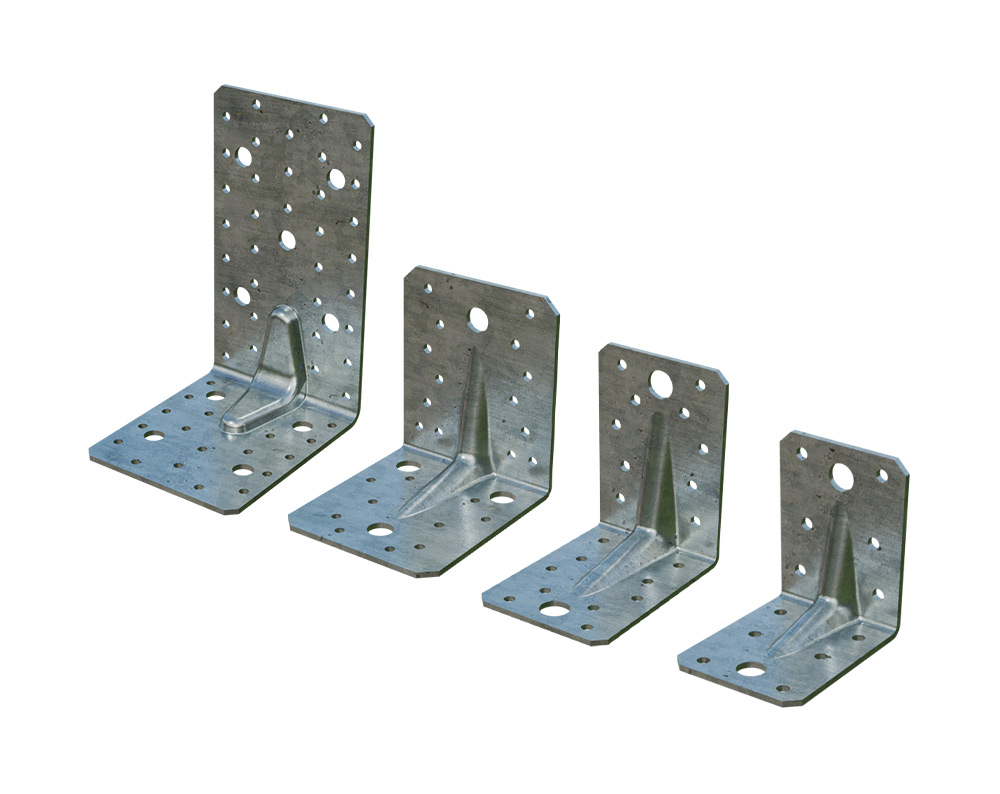

Angle bracket with a rib

Beschreibung

Angle bracket with a rib

Hot-dip galvanised steel

  • High stability thanks to reinforced rib
  • Excellent corrosion protection thanks to hot-dip galvanisation

Download

Datenblätter


Product specification sheet - Angle bracket with a rib

CAD data


DWG data Angle bracket with a rib

Art. no. Dimensions Material thickness Drill holes PU EAN
904725 70 x 70 x 55 mm 2,0 mm 12 x 5 / 2 x 11 mm 100 4251314704580
904726 90 x 90 x 65 mm 2,5 mm 20 x 5 / 2 x 11 mm 100 4251314704597
904727 100 x 100 x 90 mm 3,0 mm 28 x 5 / 6 x 11 mm 50 4251314704603
904729 110 x 170 x 95 mm 3,0 mm 53 x 5 / 9 x 13 mm 25 4251314722751
