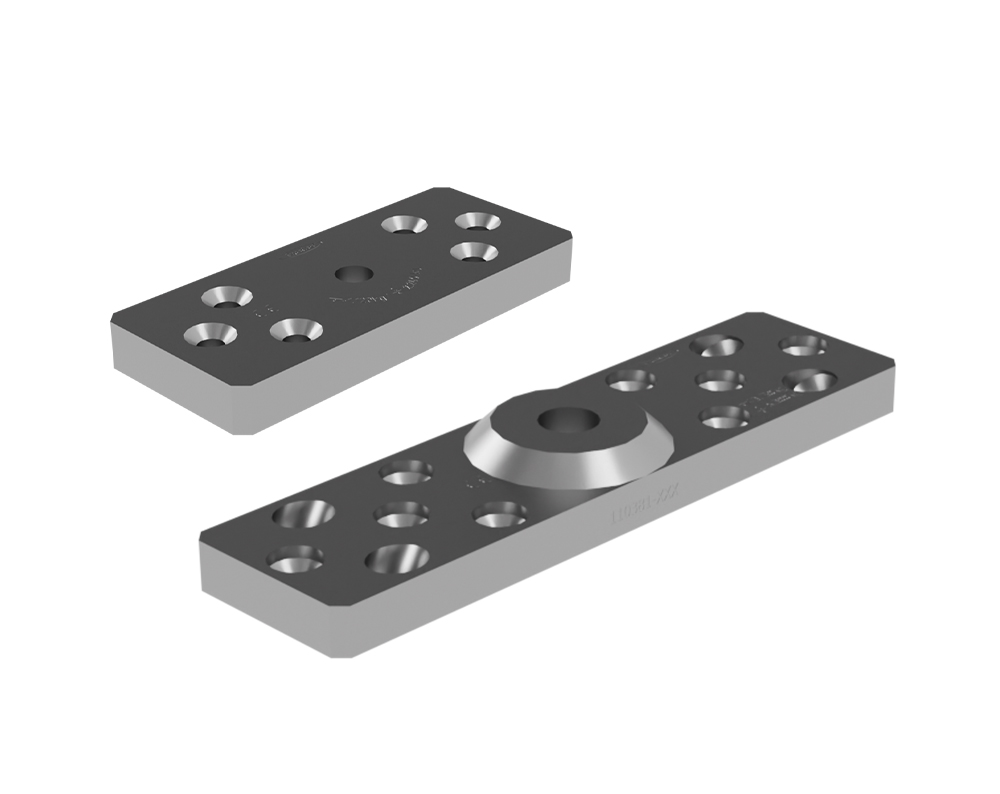

Powerblock transport anchor

The Powerblock is a powerful lifting device that was specifically designed for handling and transporting CLT panels and glued laminated timber elements. With a load capacity of up to 6.3 tonnes per attachment point, the Powerblock delivers maximum safety and efficiency for a wide range of  lifting operations. Thanks to its versatile installation configurations, the Powerblock can be flexibly adjusted to your requirements. It can, for example, be attached to the end faces

of CLT walls, the wide surface of CLT panels or the top side of beams. This makes the Powerblock a reliable tool for the safe, cost-effective and fast assembly of wooden structures.

Set M: Sling swivel M14 (110387), KonstruX SK 10,0 x L and Powerblock M (110380)

Set L: Sling swivel M24 (110389), KonstruX SK 10,0 x L and Powerblock L (110381)

Applications

• Wall or floor panels made of CLT, can also be used on end faces
• Solid wood and glued laminated timber beams
• Prefabricated walls with a timber frame construction
• Prefabricated modular structures

Advantages/Specifications

• Load capacity: up to 6.3 t per fastening point
• Reusable: visually inspect before each use and conduct an annual inspection according to DGUV 109-017
• Several different possible installation options depending on the application

Material

• Steel - S235JR
