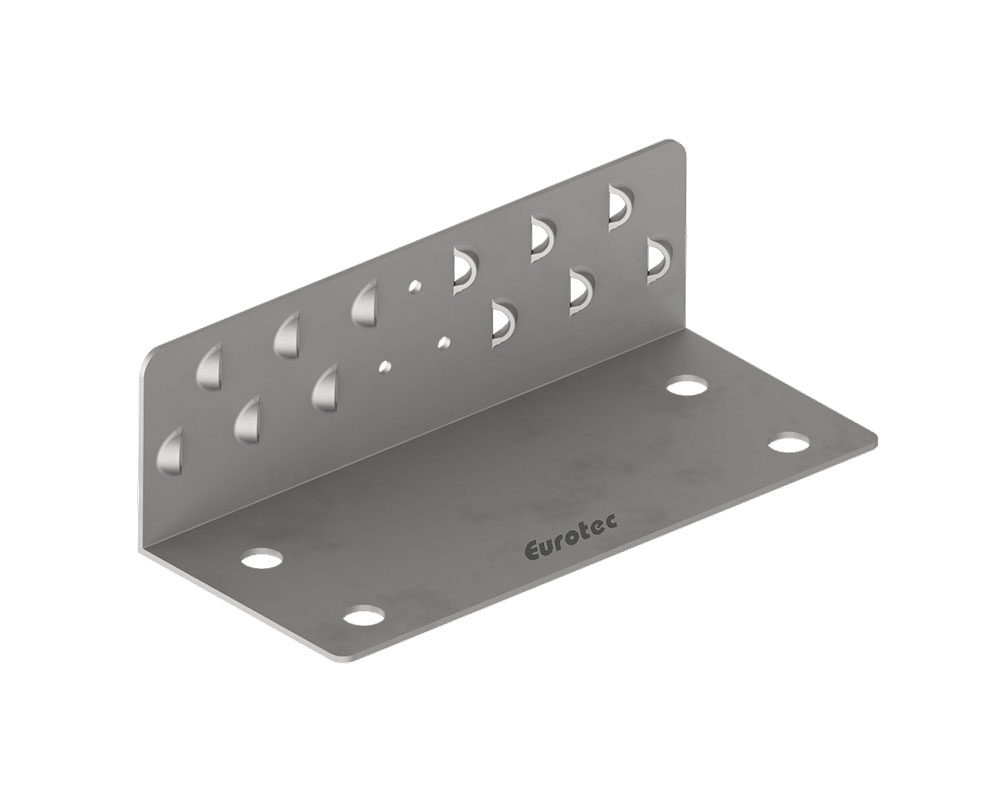

HB flat shearing angle

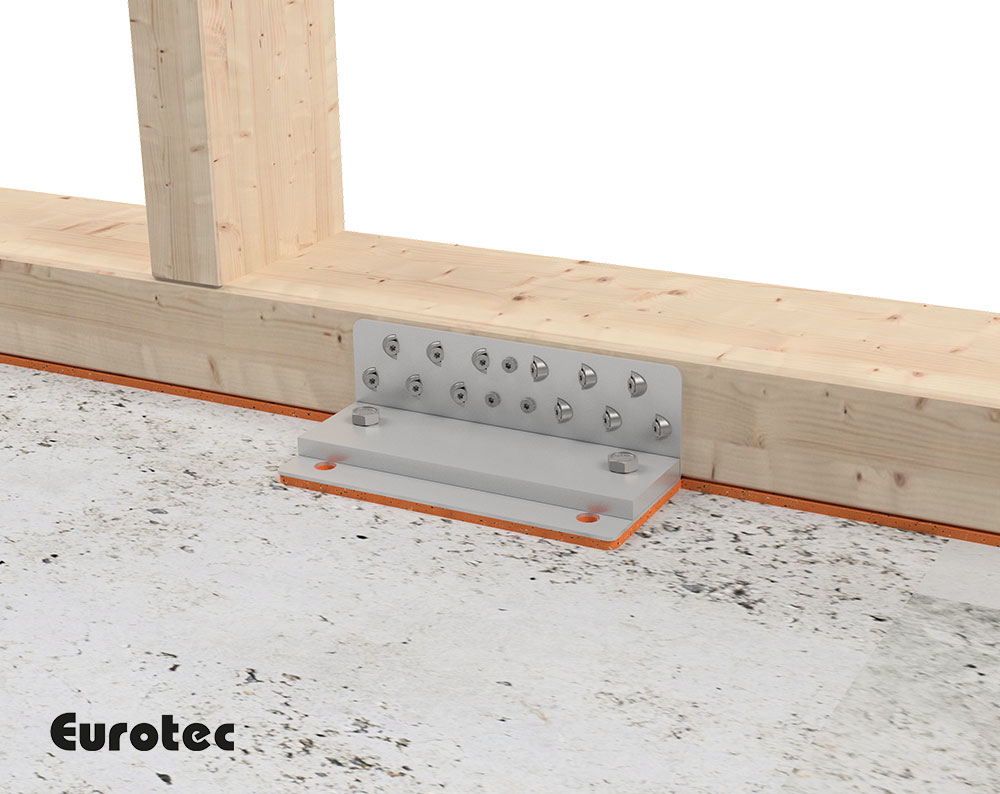

With the HB flat shearing angle you can absorb shearing forces in the field of modern timber construction. The product is used in timber frame construction. Any loads that occur can be transferred into the concrete by means of an additional pressure plate.

Material

  • HB flat shearing angle: Galvanised S250
  • Thickness of the HB flat shearing angle: 3 mm
  • Pressure plate of the HB flat shearing angle: Galvanised S235
  • Thickness of the HB flat shearing angle's pressure plate's material: 12 mm

Advantages

  • For assembly on concrete
  • Very high shear load-bearing capacity due to a new fixing concept
  • Few connectors required
  • With our pressure plate tensile forces can be absorbed

Certification

  • European Technical Assessment ETA-19/0020





ETA Approval: ETA-19/0020

Object of approval:

Three-dimensional nailing plate (hold-downs for timber-to-timber or timber-to-concrete or steel connections)

Open PDF

Download

Data sheets


Product data sheet – HB flat shearing angle

CAD data


DWG data HB flat shearing angle

Art. no. Designation Dimensions PU EAN
954087 HB flat shearing angle 100 x 230 x 70 mm 1 4251314737120
954111 Shearing angle pressure plate 230 x 68 x 12 mm 1 4251314728708
