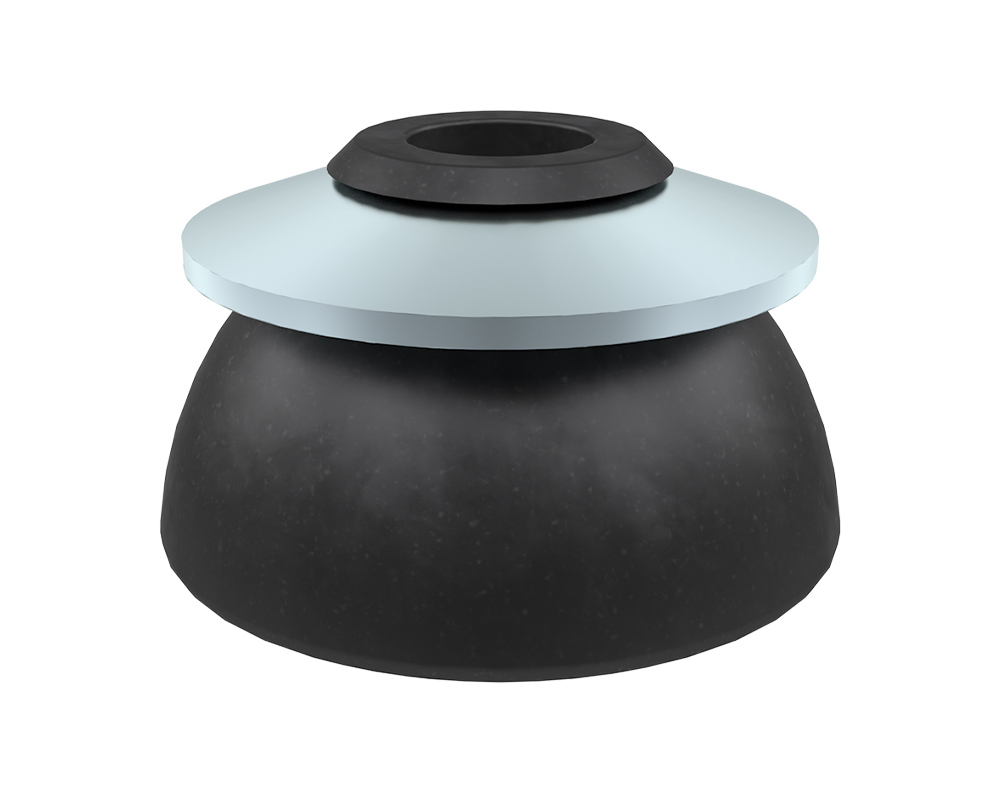

EPDM BAZ washer
With the aid of the EPDM BAZ washer and a matching screw, it is possible to fasten metal sheets, sandwich panels, artificial roof tiles, fibre cement panels and the like to wooden and metal substructures.
Thanks to its special geometry and the EPDM material, the bell seal creates a watertight seal at the fastening point. The material has very good UV resistance and, thanks to the stainless steel washer, this seal is suitable for all three service classes.
Advantages/Specifications
- Watertight installation
- UV resistant
- Multifunctional
Material
- Seal: EPDM
- Ring: Stainless steel A2
Note
- An overview of suitable screws can be found in the product data sheet.
* On request and from a minimum order quantity, the screw heads can be coloured in all RAL colours.
Product table
| Art. no. | Color | Dimensions | Material | PU | EAN |
|---|---|---|---|---|---|
| 945988 | Black | 25 x 15 mm | EPDM / Stainless steel A2 | 100 | 4064827320044 |
| 945988-RAL3009 | Sienna-red | 25 x 15 mm | EPDM / Stainless steel A2 | 100 | 4064827365403 |
| 945988-RAL9002 | Grey-white | 25 x 15 mm | EPDM / Stainless steel A2 | 100 | 4064827365410 |
| 945988-RAL8017 | Dark brown | 25 x 15 mm | EPDM / Stainless steel A2 | 100 | 4064827365397 |
