Ceiling anchor

Galvanised

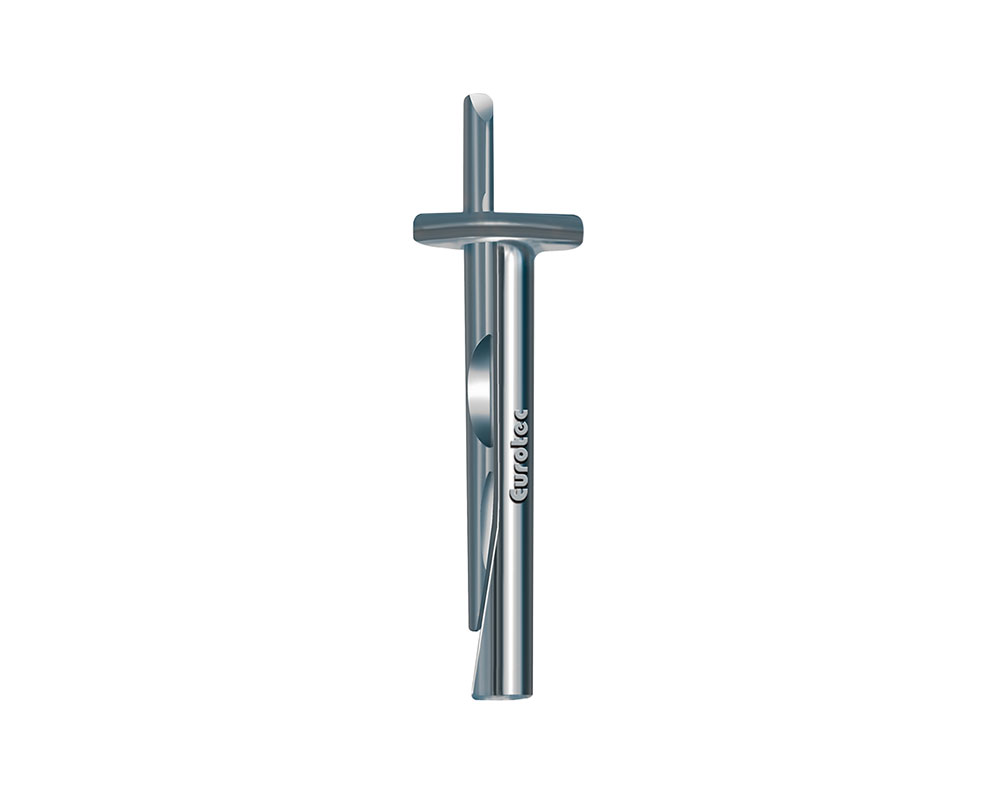

Galvanised ceiling anchor

The ceiling anchor is used as a through-hole mounting for fastening substructures/joining devices into concrete. It is suitable for concrete of strength classes from C20/25 to C50/60. The ceiling anchor must only be used for fastening non-load bearing systems at multiple locations.

Application

• Pilot-drill the base material to the desired depth (but at least 40 mm) with a diameter of 6 mm
• Minimum anchoring depth in the concrete: 32 mm
• Insert the ceiling anchor through the pre-drilled attachment
• Hammer in the pin
