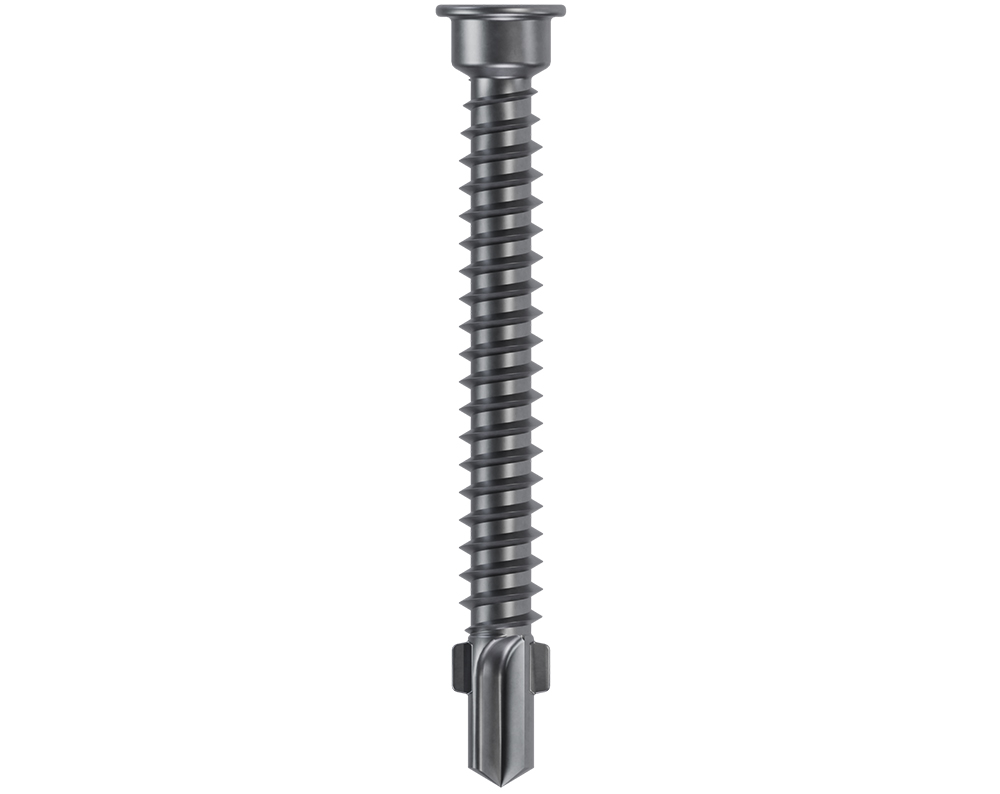

Wing-tipped profile drilling screw


Wing-tipped profile drilling screw

Hardened stainless steel

  • Limited resistance to rust, not acid-resistant
  • 10 years experience without corrosion problems with suitable woods
  • Not suitable for woods containing high amounts of tanning agents, such as, eg, cumaru, oak, merbau, robinia, etc.
  • Not suitable for use in chlorous atmospheres
  • Stainless steel in accordance with DIN 10088

Special feature

  • Screws in quickly without pilot drilling

Please refer to the information we provide on “Selecting screw steels” (p. 53 in Deck construction and landscaping catalog ), as not all timber types should be installed with hardened stainless-steel screws.


CAD data


DWG data Wing-tipped profile drilling screw

Art. no. Dimensions Drive Board thickness PU EAN
905568 5,0 x 55 mm TX20 20-25 mm 200 4251314705174
905569 5,0 x 60 mm TX20 26-30 mm 200 4251314705181
905570 5,0 x 70 mm TX20 36-40 mm 200 4251314705198
