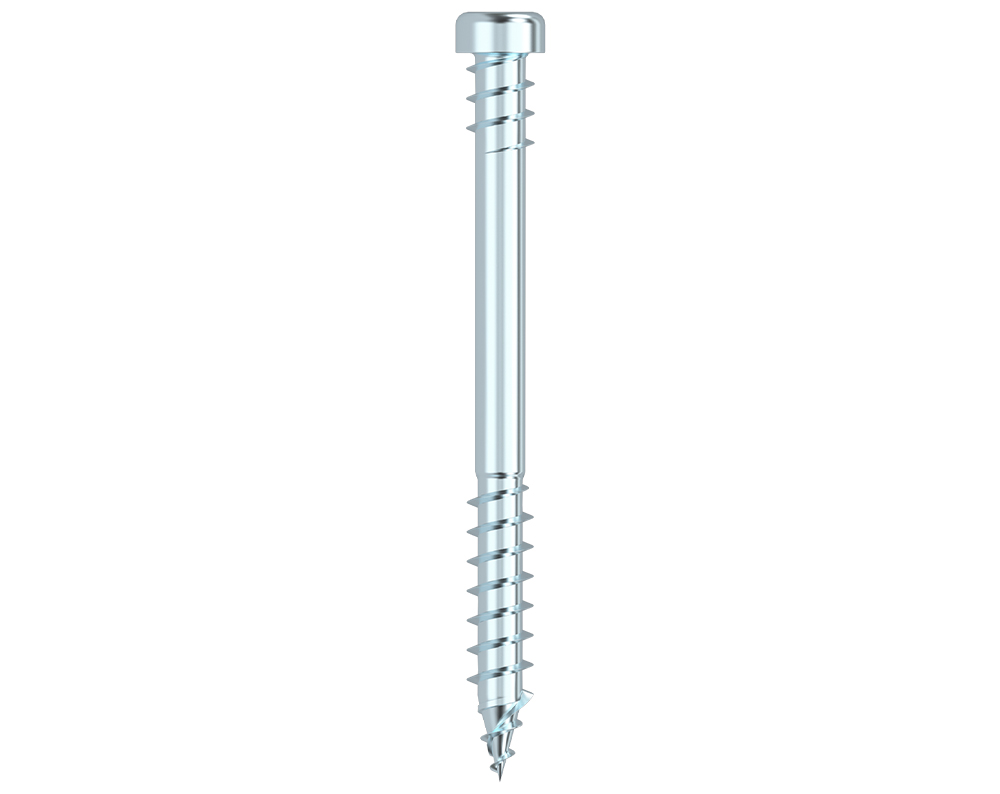

Terrassotec cylinder head, stainless steel A2

The Terrassotec cylinder head A2 is used in deck construction for fastening decking boards on a wooden substructure.

Material

Stainless steel A2:

Acid-resistant under certain circumstances
Essentially corrosion-resistant
Not suitable for chlorinated atmospheres
Can be used in service classes 1, 2 and 3
Not suitable for woods containing high levels of tannin, such as cumarú, oak, merbau, robinia, etc.

Product data sheet

Art. no.	Dimensions	Thread length lg1	Drive	Material	PU	EAN
975555	5,3 x 60 mm	24,0 mm	TX25	Stainless steel A2	250	4251314708830
