90° EVO joint
Beschreibung

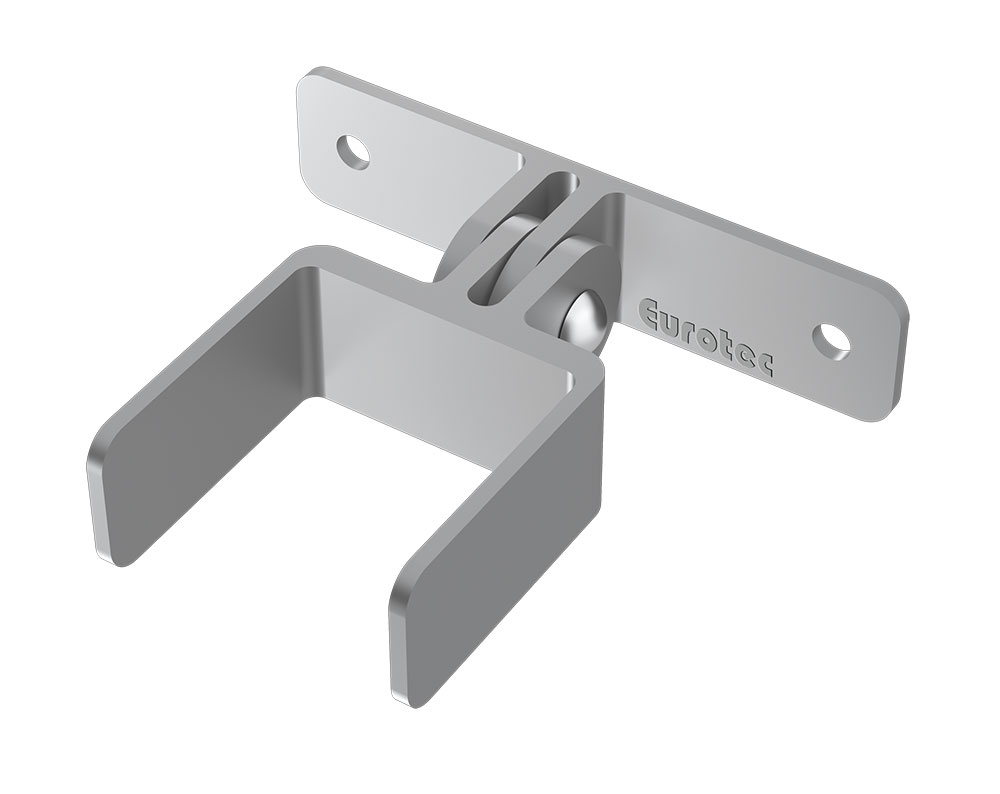

90° EVO joint
EVO pivots are used to join the EVO aluminium system profiles. The hinges can rotate freely on one side and can be used for angles up to 90° in deck substructures.
Advantages
- Freely rotating joint
- For angles up to 90°
- Individual positioning in the EVO system profile
- Rivet is made of stainless steel A2 according to DIN6791
* For fastening, we recommend using Eurotec Bighty PH drilling screws Art. no. 954068. These are not included in the product.
Download
CAD data
| Art. no. | Dimensions | Material | PU* | EAN |
|---|---|---|---|---|
| 975623 | 100 x 23,5 x 84,0 mm | Zinkdruckguss | 4 | 4251314723499 |
